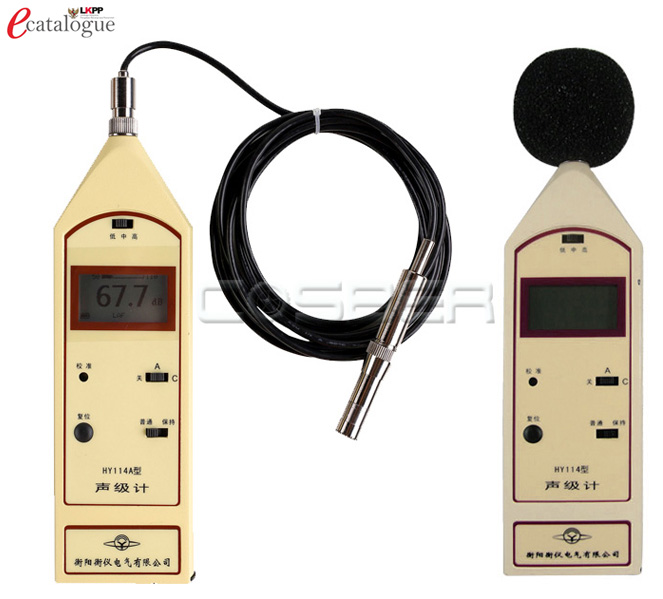

Sound Level Meter HY-114

Sound Level Meter adalah alat uji kebisingan suara untuk mengukur suara Klakson dan Kenalpot kendaraan

Sound Level Meter HY-114

Alat Uji Kebisingan Suara

Pengukur tingkat suara Digital Sound Level HY-114 dirancang untuk mengukur kerapatan frekuensi suara di area tertentu. Sound Level ini mampu menampilkan tingkat suara A dan tingkat suara C, alat ini sesuai dengan standar Internasional IEC 651-1979 untuk persyaratan Kelas-1, oleh karena itu, rentang aplikasinya luas: untuk uji mekanis, uji elektronik, uji kebisingan kendaraan dan pemeriksaan klakson kendaraan secara integrasi Yang tentunya di kombinasikan dengan beberapa alat uji yang di dukung dengan software

  • certificate number: 2019S125-43
  • Tripod
  • Sponge Ball
  • Software Integrasi (option)
  • Terdaftar di E-Katalog
PC Cabinet

Pengukuran otomatis dan pemrosesan data kebisingan dapat direalisasikan oleh instrumen yang dikendalikan komputer. Ini memiliki fungsi pelindung elektromagnetik, anti-tabrakan, dan anti-ekstrusi yang baik, dan lebih cocok untuk digunakan di lingkungan bersuhu tinggi dan berpolusi tinggi.

Features :

  1. Easy to operate
  2. Using advanced digital processing technology, it has the advantages of high reliability, good stability, wide dynamic range, no need to shift gears, etc.
  3. Suitable for on-site monitoring of environmental noise, machine noise, traffic noise and workplace noise, Also suitable for teaching demonstrations in colleges and universities.
  4. Battery - powered, small and sturdy structure design, suitable for field use and portable.

Spesification :

  1. Measurable : L XF(X=A,C), L XFmax, L XFmin, L Cpeak, 1s L eq, L E , E , D , L eq, 8hn, L N ( N =1, 5, 50, 90, 95, 99), s.
  2. Measuring microphone : HY205 prepolarized test condenser microphone (level 2), or HY207 prepolarized test condenser microphone (level 1), free-field frequency response, Nominal diameter is 12.7 mm, nominal sensitivity is 50 mV/Pa (nominal sensitivity level is -26 dB, reference value is 1 V/Pa)
  3. Frequency range : 10 Hz~20 kHz (level 1), 20 Hz ~ 12.5 kHz (2 levels)
  4. Frequency weighting : A weighting, C weighting
  5. Time weighting : F (fast)
  6. Measuring range: The total range of 30 dB ~ 130 dB is divided into three levels: low range, middle range and high range
  7. Display : 128x64 dot matrix liquid crystal display (LCD), resolution 0.1dB, with overload and under range , low battery voltage and other signs
  8. Digital output : RS232 serial interface
    1. Analog output: the output jack is a 3.5 mm two-channel headphone jack, the minimum load impedance is 10 kO AC linear voltage: 0.5 V root mean square value (corresponding to the upper limit of each block )
    2. DC logarithmic voltage: 15 mV/dB, the output voltage has nothing to do with the level range, it is 450 mV ~ 1950 mV in the total range, (that is, it is 1950 mV when the upper boundary of the measurement range is 130 dB, and when the lower boundary is 30 dB 450 mV)
  9. Power supply : 4 R6P-type (No. 5) batteries; LR6-type battery (refer to environmental conditions, continuous work for 30 h); HY9214-type (nominal value 5V) external power supply
  10. Dimensions : long x width x thickness 256 x 74 25 mm
  11. Operating temperature range : Class 1 sound level meter: -10°C to 50°C, Class 2 sound level meter: 0°C to 40°C
  12. Weight : 500g (including battery )
