Sound Level Meter HY-108

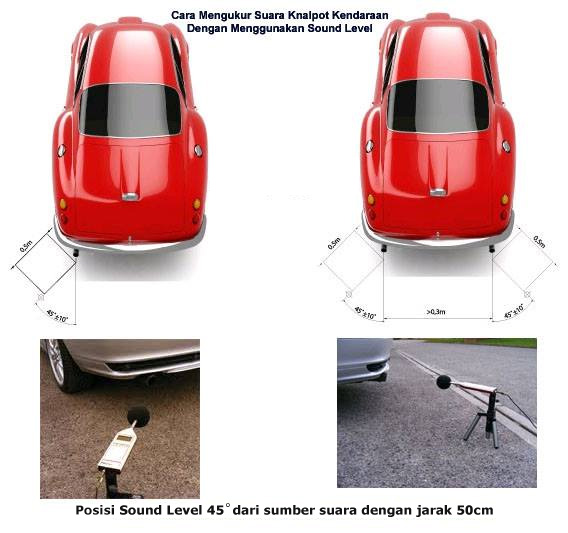

Sound Level Meter adalah alat uji kebisingan suara untuk mengukur suara Klakson dan Kenalpot kendaraan
![Sound Level Meter HY-108 Sound Level Meter HY-108](assets/img/cosber/sound_level_hy-108.jpg)
Alat Uji Kebisingan Suara
Pengukur tingkat suara atau Sound Level Meter Model HY-108 adalah instrumen genggam yang kinerjanya sesuai dengan standar nasional GB/T 3785-2010 dan standar internasional IEC 61672:2013 "Sound Level Meter" untuk pengukur tingkat suara Kelas 1. Pengukur level suara ini adalah pengukur level suara digital terbaru dari perusahaan. Ini ringan dan portabel.
- certificate number: 2019S125-43
- Tripod
- Sponge Ball
- Software Integrasi (option)
- Terdaftar di E-Katalog
![Sound Level Meter HY-108 Sound Level](assets/img/cosber/sound_level_meter.jpg)
Sangat cocok untuk pengukuran kebisingan produk mekanis dan elektrik di tempat, kebisingan lingkungan, kebisingan lalu lintas, dan kebisingan di tempat kerja. Itu juga dapat digunakan untuk demonstrasi pengajaran universitas.
Features :
- Easy to operate
- Using advanced digital processing technology, it has the advantages of high reliability, good stability, wide dynamic range, no need to shift gears, etc.
- Suitable for on-site monitoring of environmental noise, machine noise, traffic noise and workplace noise, Also suitable for teaching demonstrations in colleges and universities.
- Battery - powered, small and sturdy structure design, suitable for field use and portable.
Spesification :
- Performance level: GB/T3785 and IEC61672 level 1.
- Measured evaluation quantity: LP (time-weighted sound level) or Lmax (maximum time-weighted sound level), Lmin (minimum time-weighted sound level), LCpeak (C-weighted peak sound level).
- Microphone: HY207 type 1 engineering measurement microphone, nominal diameter 12.7 mm, free-field frequency response.
- The nominal sound pressure sensitivity is 50 mV/Pa (the nominal sound pressure sensitivity level is -26 dB, and the reference value is 1 V).
- Frequency range: 10 Hz~20 kHz.
- Frequency weighting: A weighting, C weighting.
- Time weighting: F (fast response), S (slow response).
- Measuring range: A sound level: 30 dB ~ 130 dB; C sound level: 40 dB ~ 130 dB.
- Threshold setting range: 30dB ~ 130dB, when the sound level exceeds the threshold, a sign of exceeding the threshold will be given, and a high level will be output.
- Automatic calibration range: ±4.5dB (reference value is 50mV/Pa).
- Display: 128x64 dot matrix liquid crystal display (LCD), resolution 0.1dB, with signs such as overload, under-range, low battery voltage alarm, and over-threshold alarm.
- Analog output: The output jack is a 3.5 mm dual-channel headphone jack with a minimum load impedance of 10kΩ.
- DC logarithmic voltage: The output voltage is related to the logarithm of the measured sound pressure, and the unit sound pressure output voltage is 15 mV/dB.
- AC linear voltage: The output voltage is linearly related to the measured sound pressure, and the output voltage corresponding to the upper boundary of the level range is 2.0V.
- Digital output: The output connector is DB9 male (pin type), RS232 serial communication port, output ASCII code, modulation rate (baud rate) is 9600 Bd.
- Power supply: 2 LR6 type (No. 5) batteries, which can work continuously for 27 hours under reference environmental conditions.
- Dimensions: L x W x T 210 x 68 x 31 mm.
- Weight: 210 g.
- Operating temperature range: -10°C~50°C.
